AccuLiner HVAC Acoutic Liner Cutting Machine

High speed cutting of acoustic liner for HVAC duct work







AccuLiner by ShapeTech

Fast Cutting Acoustic Liner for HVAC Contractors



AccuLiner by ShapeTech   HVAC Acoustic Liner Cutting Machine

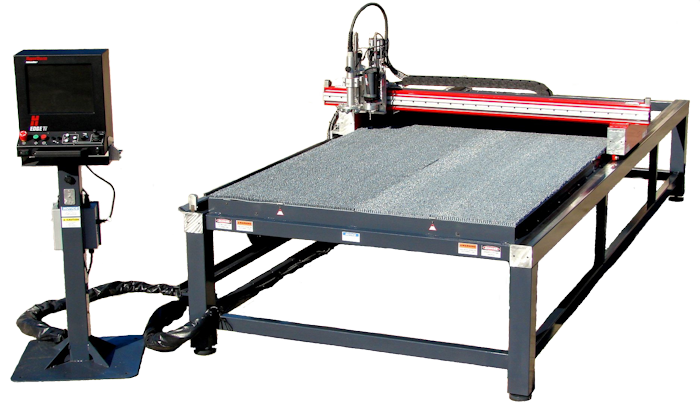

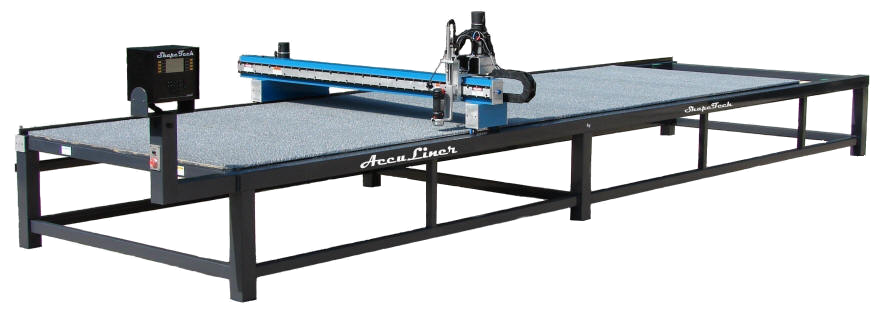

The above machine is the "AccuLiner" shape cutting machine with High Speed Spiral Cutting Saw, AccuDrive HD-750 Servo drive system, Rack and Pinion for Traverse and Rail Axis with energy chain, ST1002 Pneumatic lifter, PicoPath CNC controller and 60" X 120" AstroTurf cutting table.

Photograph courtesy ShapeTech : Baton Rouge, LA


AccuLiner Summary

The "AccuLiner" HVAC Liner Shape Cutting Machines

Welcome to the future of Shape Cutting Technology with the introduction of the "AccuLiner"   shape cutting machine. Finally a machine designed for maximum versatility for operation, productivity, speed and performance.  Models with speeds from 1000 IPM to an unbelievable 5000 IPM traverse speeds with cutting capabilities up to 2 inch material.  The "AccuLiner" has a standard cutting width of 60 X 120 inches.  The "AccuLiner" brings a new dimension to Acoustic Liner cutting machines with our "Smart Interface", "Linear Positioning Crossdrive System", Rack and Pinion drive System and our new Aluminum frame design.  The "AccuLiner" will come complete with CNC controller, Servo Drive System, Spiral Cutting Saw,  and Cutting table.  All this and starting with a affordable and competitive price, the "AccuLiner" will truly out perform it's competition. Call today for a free quote.

    "ShapeTech will always strive to give our customers the finest in quality and workmanship."




Key Features

  • Aluminum  frame design

    The Aluminum frame design of the "AccuLiner" provides many benefits such as an overall lighter weight allowing the "AccuLiner" to have faster acceleration, greater speeds, and better corner performance.  The wide footprint and tapered back brace allow the "AccuLiner" to be stable over the full speed range of the machine giving it unequaled performance. The spiral brushed Aluminum frame does not peel or crack like other painted machines. This allows the "AccuLiner" to be cleaned easier and maintain a long attractive life span.

  • Linear Positioning Crossdrive System

    The “Linear Positioning” Crossdrive system was engineered to be stable and accurate. By engineering a more efficient motor transport system while still maintaining our Rockwell C60 linear V-rails and our compact carriage assembly. The "AccuLiner" is another reason why ShapeTech  shape cutting machines are creating new standards in machine performance.

  • Innovations

    "AccuLiner" to the "AccuPlasmaQC" and this will give you the lowest priced Plasma with Liner cutting system on the market. This twin table cutting system gives superior performance while handing all of your cutting needs. All this with a affordable competitive price tag it's no wonder the ShapeTech shape cutting machines are so versatile.

  • Savings, Performance, Production

    The "AccuLiner" Shape Cutting Machine is a Gantry machine that uses only 20% more space than its own cutting width, and was designed especially for "High Speed Cutting". This new design gives increased stability over the full speed range of the machine. With speeds available up to 5000 IPM, this can make a real difference in productivity and performance.

  • Custom Sizes

    The "AccuLiner" has a standard cutting width of 60 X 120 inches. You can also order the "AccuLiner" with a 60" X 240", 72" X 120", or  72" X 240" cutting table.


Specifications



Standard "AccuLiner" Includes:

  • User Friendly PicoPath CNC control

  • ShapeTech AccuLiner  Aluminum Frame

  • ShapeTech 3002 Adjustable Pneumatic Lifter * NEW *

  • Rugged  X and Y axis Energy Chain

  • Traverse travel Speeds up to 2500 IPM

  • High Speed Spiral Cutting Saw cutting system

  • AccuDriveAC .75KW Digital AC Servo Drive system

  • ShapeTech Rack and Pinion gear system

  • ShapeTech Heavy Duty Steel Rail and Table Frame

  • Adjustable CNC mount for 0deg., 15deg., and 30deg. tilting and swivelling.

  • 60" X 120" Ergonomic designed table sealed and covered with gray DACCTurf

  • 4 Anti-vibration adjustment pads for precise leveling of equipment

  • Set up for RS-232 DNC communication

  • *(Ask about our software special)

Power Requirements:

  • Single or Three phase 208/230 volt A/C power for servo drive system (Electrician required)

  • Single Phase 120/230volt A/C 60cycles for electronics on machine (Electrician required) (must specify voltage with order).
