AccuPlasma Quick Change HVAC Duct and Acoustic Liner Cutting by ShapeTech

Metal duct cutting and Acoustic Liner cutting on one machine. Change over in less than ten minutes.



Fast & Accurate Plasma and Acoustic Liner Duct Cutting



AccuPlasma QC

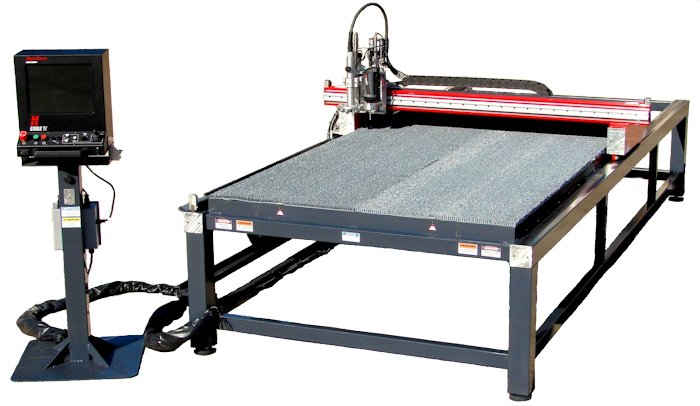

The above machine is the "AccuPlasmaQC" shape cutting machine with High Speed 60 amp Plasma cutting system, Rack and Pinion for Traverse and Rail Axis with energy chain, ST3002 Pneumatic lifter, PicoPath  CNC controller with AccuDrive AC digital Drive System, and  60" X 120" downdraft cutting table.

Photograph courtesy ShapeTech : Baton Rouge, LA


Product Summary

The "AccuPlasma QC" Plasma Shape Cutting Machine

Welcome to the future of Shape Cutting Technology with the introduction of the "AccuPlasma QC"   shape cutting machine. Finally a machine designed for maximum versatility for operation,  productivity, speed and performance. Models with speeds from 1000 IPM to an unbelievable 5000 IPM traverse speeds with cutting capabilities up to 1 inch steel and 2 inch Liner material. The "AccuPlasma QC" has a standard cutting width of 60 X 120 inches on up to 72 X 240 inches. The "AccuPlasma QC" brings a new dimension to plasma cutting machines with our "Smart Interface",  "Linear Positioning Crossdrive System", Rack and Pinion drive System and our  new Aluminum  frame design. The "AccuPlasma QC" will come complete with CNC controller, AC Servo Drive System, Plasma cutting System, Spiral Cutting Tool, DACC Turf and Cutting table. The "AccuPlasma QC" will truly out perform it's competition.

    "ShapeTech will always strive to give our customers the finest in quality and workmanship."




Key Features

  • Aluminum frame design

    The Aluminum frame design of the "AccuPlasma" provides many benefits such as an overall lighter weight allowing the "AccuPlasma" to have faster acceleration, greater speeds, and better corner performance.  The wide footprint and tapered back brace allow the "AccuPlasma" to be stable over the full speed range of the machine giving it unequaled performance. The spiral brushed Aluminum frame does not peel or crack like other painted machines. This allows the "AccuPlasma" to be cleaned easier and maintain a long attractive life span.

  • Linear Positioning Crossdrive System

    The “Linear Positioning” Crossdrive system was engineered to be stable and accurate. By engineering a more efficient motor transport system while still maintaining our Rockwell C60 linear V-rails and our compact carriage assembly. The "AccuPlasma" is another reason why ShapeTech cutting machines are creating new standards in machine performance.

  • Innovations

    Update your "AccuPlasma" to the "ShapeMaster" and this will give you the lowest priced Precision Plasma cutting system on the market. This 100 amp FineLine Plasma cutting system gives superior performance including automatic gas control, and touch screen operated Height control . With features like this and all for under 80 thousand  or upgrade to the 200 amp version under 90 thousand . Also we offer a 200 amp without automatic gas control starting under 80 thousand.  It's no wonder the ShapeTech shape cutting machines are so versatile.

  • Savings, Performance, Production

    The "AccuPlasma" Shape Cutting Machine is a Gantry machine that uses only 20% more space than its own cutting width, and was designed especially for "High Speed Cutting". This new design gives increased stability over the full speed range of the machine. With speeds available up to 5000 IPM, this can make a real difference in productivity and performance.

  • Custom Sizes

    The "AccuPlasma" has a standard cutting width of 60 X 120 inches. You can also order the "AccuPlasma II" with a 60" X 240" cutting table.


Specifications



Standard "AccuPlasma QuickChange" Includes:
  • User Friendly PicoPath CNC control

  • ShapeTech AccuPlasma  Aluminum Gantry

  • ShapeTech 3002 Floating Pneumatic Lifter

  • IGUS X and Y axis Energy Chain

  • Traverse travel Speeds up to 2500 IPM

  • High Speed 60 amp Plasma cutting system

  • AccuDrive AC .75KW Digital Servo Drive system

  • ShapeTech Rack and Pinion gear system

  • ShapeTech Heavy Duty Steel Rail and Table Frame

  • Adjustable CNC mount for 0deg., 15deg. and 30deg. tilting

  • Adjustable table slats for curved, straight, or doubled layouts

  • 60" X 120" Ergonomic designed sealed Downdraft table

  •  Anti-vibration adjustment pads for precise leveling of equipment

  • Set up for RS-232 DNC communication

  • *(Ask about our software special)

Power Requirements:
  • Single or Three phase power for plasma (depending on plasma ordered (Electrician required)
  • Single or Three phase power 208/240 A/C 60cycles for Servo Drive System on machine (Electrician required)
  • Single Phase 120 VAC  60cycles for CNC and operations on machine (Electrician required)

View or Download



Watch Video





Welcome
Welcome
image1 image2 image3 image4

DACC Cutting Machines

Our inovative ideals in shape cutting technology has brought our 2000, 2100, and 3000 Series cutting machines to the forefront of Cutting Technology

A Better Shape for Shape Cutting

The Inset Rail Design by DACC Industries creates a safer work inviroment for the operator and the fact you can use a forklift to load and unload the table..

HVAC and Light Fabracation

AccuPlasma and AccuLiner for the HVAC cutting was the first at 2000 IPM Traversing with no "wiggles and no Jiggles"

Custom Machines

We don't mind making custom machhines for your application.
