AccuJet Water Jet Cutting Machines

Fast accurate Water Jet cutting of materials for industrial  Fabrication.



Fast & Accurate Water Jet Cutting

  AccuPlasma 510

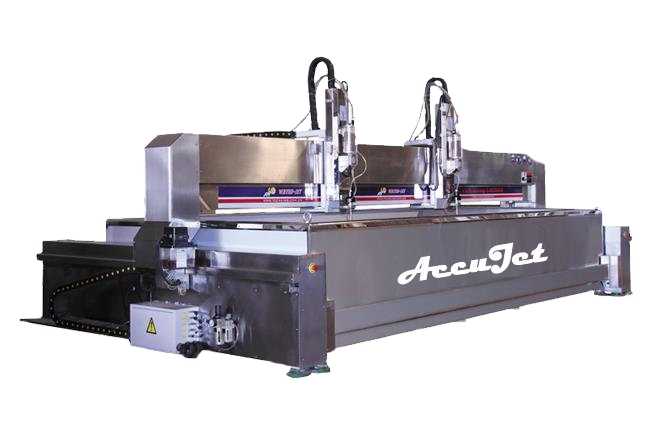

The above machine is the "AccuJet" shape cutting machine with two high pressure Heads, High Pressure 60 K 50 HP Intensifier cutting system, Yaskawa AC Digital Servo drive system, Ball screw for Traverse and Rail Axis with energy chain, motorized Z axis lifter, WEhung CNC controller, and a 60" X 120"  cutting table.

Photograph courtesy DACC : Baton Rouge, LA


Product Summary

The "AccuJet" Water Jet  Cutting Machines

Welcome to the future of Shape Cutting Technology with the introduction of the "AccuJet"   water jet shape cutting machine. Finally a machine designed for maximum versatility for operation,  productivity, speed and performance. Models with speeds from 250 IPM to an unbelievable 1000 IPM traverse speeds with cutting capabilities up to 12 inch material. The "AccuJet" has machine sizes from .8mX.6m to a incredible 4mX12m. The "AccuJet" brings a new dimension to water jet cutting machines with our High end CNC controller and Interface,  Hiwin profile rails with 32mm ball-screws, Yaskawa servo Drive system and our  new Gantry frame design. The "AccuJet" will come complete with CNC controller, Servo Drive System, 60K 50HP Intensifier Pump, and Cutting table. All this and starting with a affordable price tag. The "AccuJet" will truly out perform it's competition.

    "AccuJet will always strive to give our customers the finest in quality and workmanship."




Key Features

  • All Steel Gantry frame design

    The Engineered Gantry frame design of the "AccuJet" provides many benefits such as an overall lighter weight allowing the "AccuJet" to have faster acceleration, greater speeds, and better corner performance.  The custom braced beam of the "AccuJet" Gantry beam  allows the machine to be stable over the full speed range of the machine giving it unequaled performance. With the stainless steel covers and special designed seals protecting the screws and ways allowing the "AccuJet" to be cleaned easier and to maintain a long attractive life span.

  • Linear Positioning  System

    The “Linear Positioning” system was engineered to be stable and accurate. By engineering a more efficient motor transport system while still maintaining our HIWIN linear Profile-rails and our compact carriage assembly. The "AccuJet" is another reason why AccuJet cutting machines are creating new standards in machine performance.

  • Innovations

    "AccuJet" has engineered a more effective lubrication system to deliver oil to all parts of the system needing oil to ensure the long and durable performance of the machines motion. We also have included alarms when oil is lacking in the system. "AccuJet" has also developed an effective seal system for the machine along with the Stainless Steel covers provides superior protection from dust and water contamination.    It's no wonder the AccuJet shape cutting machines are so versatile.

  • Savings, Performance, Production

    The "AccuJet" Water Jet Cutting Machine is a Gantry machine that uses only 30% more space than its own cutting width, and was designed especially for "High Speed Cutting". This new design gives increased stability over the full speed range of the machine. With speeds available up to 1000 IPM, this can make a real difference in productivity and performance.

  • Custom Sizes

    The "AccuJet" water jet machines start at .6m by .8m  to 4m by 12m . Custom sizes upon request.


Specifications

Standard "AccuJet" Includes:
  • User Friendly WeHung CNC control

  • AccuJet AccuTech  Enginered Frame

  • Digital AC Servo Lifter

  •  X and Y axis Energy Chain

  • Traverse travel Speeds up to 500 IPM

  • High Pressure 60K Intenceifier Pump

  • Yaskawa .85KW digital AC Servo Drive system

  • ABBA 32 mm Large Pitch ball screws

  • HIWIN Large profile rail

  • Pedistal CNC mount for operator convenance

  • Adjustable table slats for curved, straight, or doubled layouts

  • Ergonomic designed sealed work table

  •  Anti-vibration adjustment pads for precise leveling of equipment

  • Set up for Wi-Fi communication

  • *(Ask about our software special)

Power Requirements:

  • Single or Three phase power for plasma (depending on plasma ordered (Electrician required)
  • Single Phase 120 VAC and 208/240 3 phase A/C 60cycles for electronics on machine (Electrician required)
