AccuPlasma by ShapeTech

Fast accurate Plasma cutting of HVAC duct work and light Fabrication.



Fast & Accurate Plasma Cutting

  AccuPlasma 510

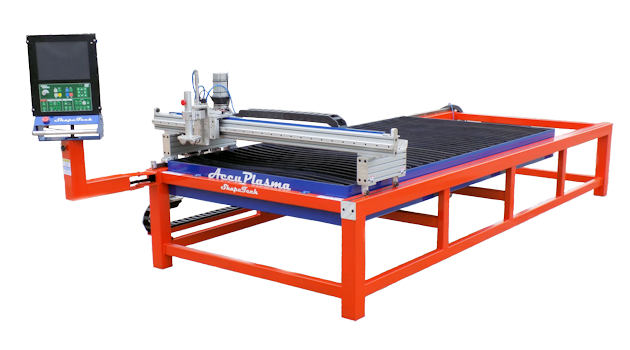

The above machine is the "AccuPlasma" shape cutting machine with High Speed 60 amp Plasma cutting system, AccuDrive AC Digital Servo drive system, Rack and Pinion for Traverse and Rail Axis with energy chain, ST3002 Pneumatic lifter, iPerformance CNC controller, and a 60" X 120" downdraft cutting table.

Photograph courtesy ShapeTech : Baton Rouge, LA


Product Summary

The "AccuPlasma" Plasma Shape Cutting Machines

Welcome to the future of Shape Cutting Technology with the introduction of the "AccuPlasma"   shape cutting machine. Finally a machine designed for maximum versatility for operation,  productivity, speed and performance. Models with speeds from 1000 IPM to an unbelievable 3000 IPM traverse speeds with cutting capabilities up to 1 inch material. The "AccuPlasma" has a standard cutting width of 60 X 120 inches. The "AccuPlasma" brings a new dimension to plasma cutting machines with our "Smart Interface",  "Linear Positioning Crossdrive System", Rack and Pinion drive System and our  new Aluminum  Gantry frame design. The "AccuPlasma" will come complete with CNC controller, Servo Drive System, Plasma cutting System, and Cutting table. All this and starting with a affordable price tag. The "AccuPlasma" will truly out perform it's competition.

    "ShapeTech will always strive to give our customers the finest in quality and workmanship."




Key Features

  • Aluminum Gantry frame design

    The Aluminum Gantry frame design of the "AccuPlasma" provides many benefits such as an overall lighter weight allowing the "AccuPlasma" to have faster acceleration, greater speeds, and better corner performance.  The wide footprint and tapered back brace allow the "AccuPlasma" to be stable over the full speed range of the machine giving it unequaled performance. The spiral brushed Aluminum frame does not peel or crack like other painted machines. This allows the "AccuPlasma" to be cleaned easier and maintain a long attractive life span.

  • Linear Positioning Crossdrive System

    The “Linear Positioning” Crossdrive system was engineered to be stable and accurate. By engineering a more efficient motor transport system while still maintaining our Rockwell C60 linear V-rails and our compact carriage assembly. The "AccuPlasma" is another reason why ShapeTech cutting machines are creating new standards in machine performance.

  • Innovations

    Update your "AccuPlasma" to the "AccuPlasmaHD" and this will give you the lowest priced Precision Plasma cutting system on the market. The ability to use High Definition  Plasma cutting system gives superior performance including automatic gas control, and touch screen operated Height control . Upgrade to a 200 amp version for a thicker cutting capacity. Also we offer a 200 amp without automatic gas control.  It's no wonder the ShapeTech shape cutting machines are so versatile.

  • Savings, Performance, Production

    The "AccuPlasma" Shape Cutting Machine is a Gantry machine that uses only 20% more space than its own cutting width, and was designed especially for "High Speed Cutting". This new design gives increased stability over the full speed range of the machine. With speeds available up to 3000 IPM, this can make a real difference in productivity and performance.

  • Custom Sizes

    The "AccuPlasma" has a standard cutting width of 60 X 120 inches. You can also order the "AccuPlasma II" with a 60" X 240" cutting table.


Specifications

Standard "AccuPlasma" Includes:
  • User Friendly iPerformance CNC control

  • ShapeTech AccuTech  Aluminum Frame

  • ShapeTech 3002 Floating Pneumatic Lifter

  • IGUS X and Y axis Energy Chain

  • Traverse travel Speeds up to3000 IPM

  • High Speed 60 amp Plasma cutting system

  • AccuDrive .75KW digital AC Servo Drive system

  • ShapeTech Rack and Pinion gear system

  • ShapeTech Heavy Duty Steel Rail and Table Frame

  • Adjustable CNC mount for 0deg., 15deg. and 30deg. tilting

  • Adjustable table slats for curved, straight, or doubled layouts

  • 60" X 120" Ergonomic designed sealed Downdraft table

  •  Anti-vibration adjustment pads for precise leveling of equipment

  • Set up for Wi-Fi communication

  • *(Ask about our software special)

Power Requirements:

  • Single or Three phase power for plasma (depending on plasma ordered (Electrician required)
  • Single Phase 120 VAC and 208/240 3 phase A/C 60cycles for electronics on machine (Electrician required)

View or Download

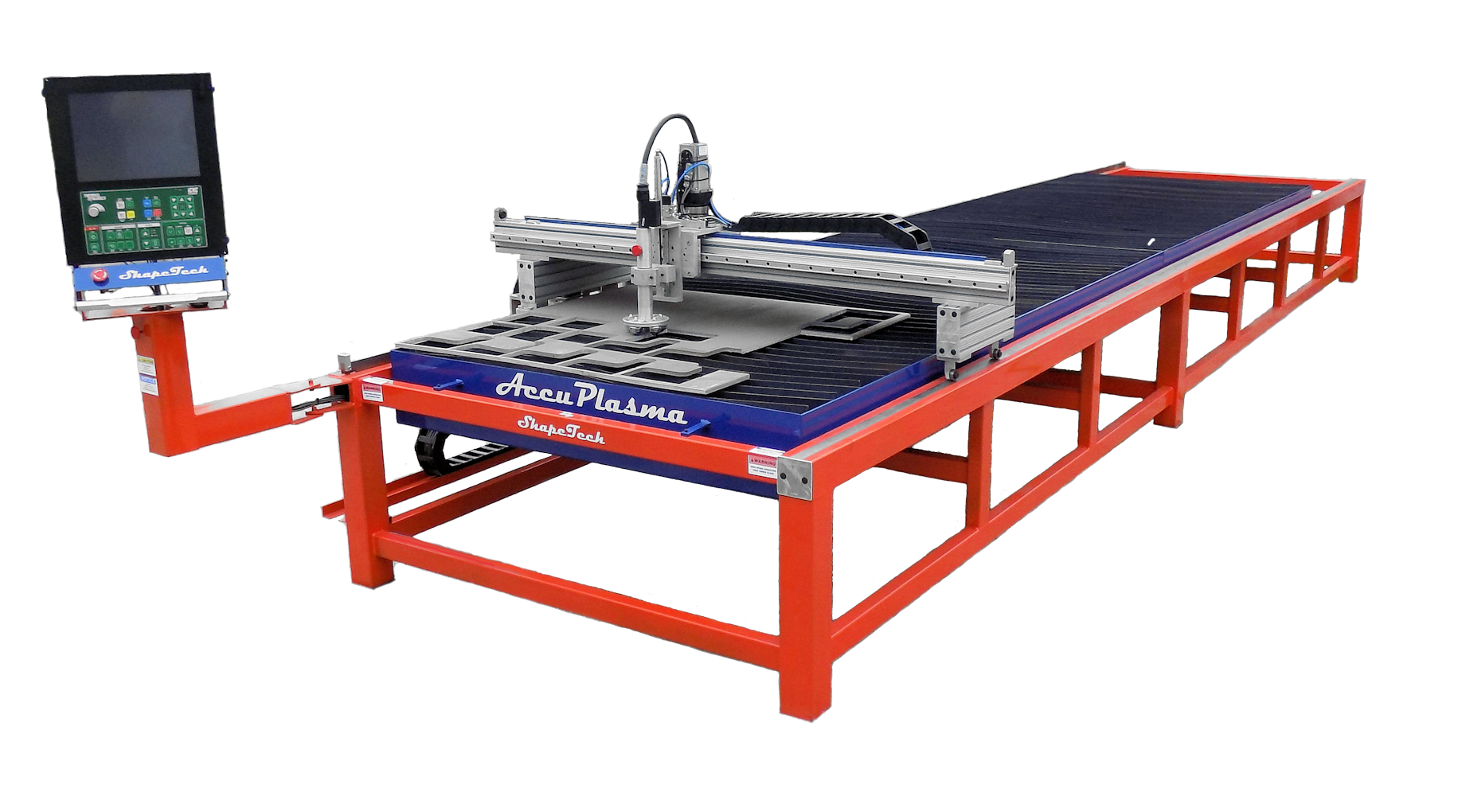

   AccuPlasma 520









Welcome
Welcome
image1 image2 image3 image4 image5 image6

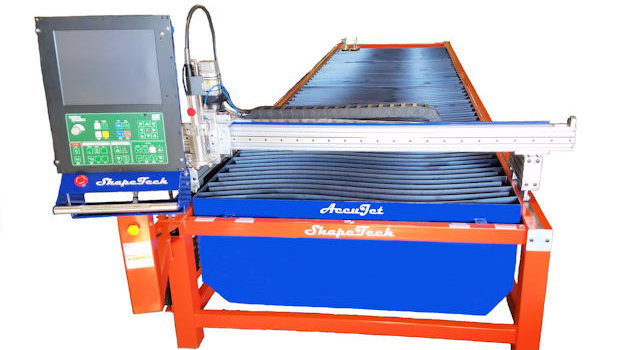

AccuJet Water Jet Cutting Machines

Our inovative ideals in shape cutting technology has brought our New line of Water Jet Cutting Machines

A Better Shape for Shape Cutting

The Inset Rail Design by DACC Industries creates a safer work inviroment for the operator and the fact you can use a forklift to load and unload the table..

Custom Cutting Machines

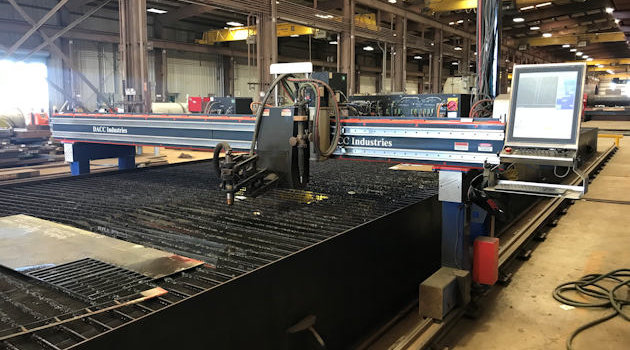

Custom Bevel cutting machine with 800 amp plasma and Oxy-Fuel

HVAC and Light Fabracation

AccuPlasma and AccuLiner for the HVAC cutting was the first at 2000 IPM Traversing with no "wiggles and no Jiggles"

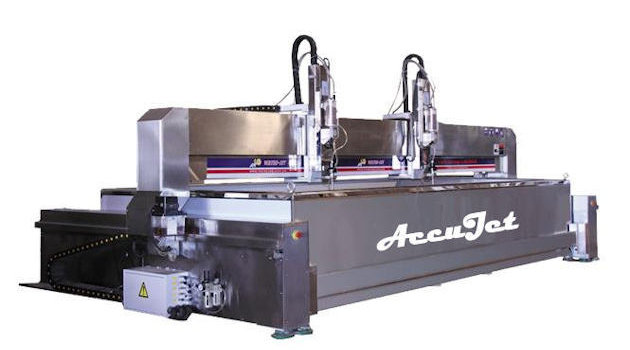

AccuJet Precision Water Jet Cutting
